1.2 What is being built: PCB vs PCBA vs box build

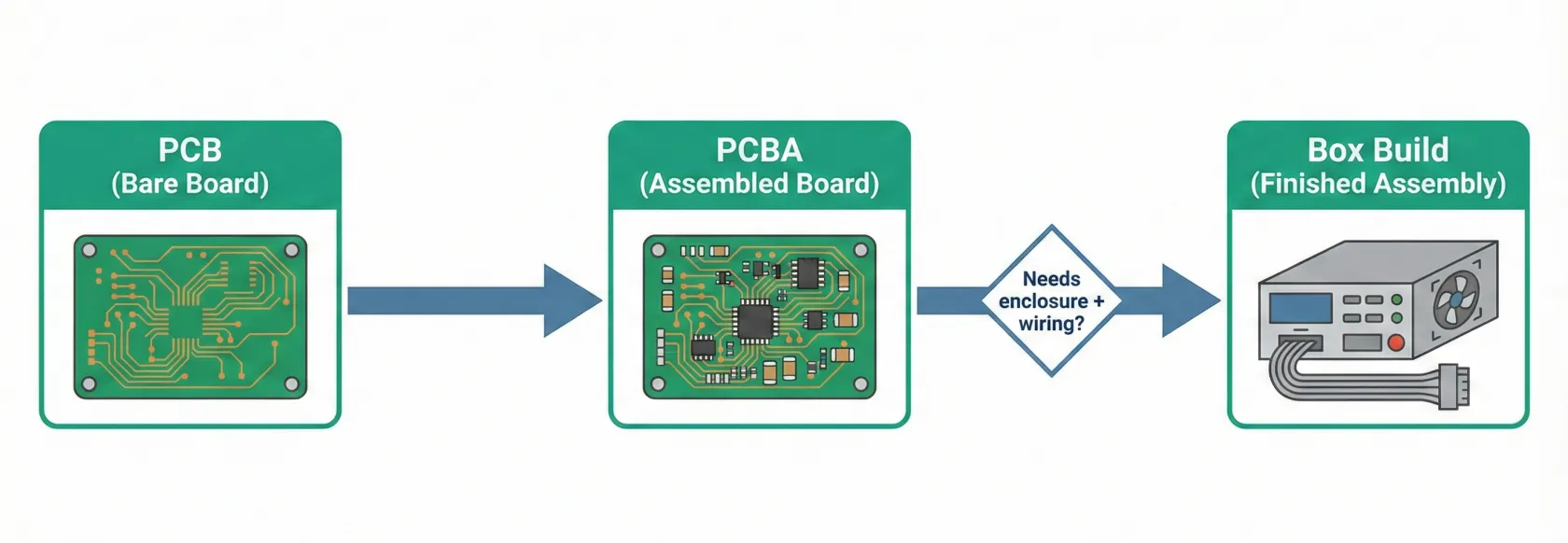

Precision in engineering terminology prevents significant manufacturing delays. Conflating the term “PCB” with “PCBA” confuses supply chains, invalidates vendor quotes, and creates unnecessary costs. The manufacturing process builds in stages: the bare board is a component of the assembly, and the assembly itself becomes a component of the final system. Clearly understanding the physical scope of the product is essential to effectively control cost, schedule, and quality at each tier.

1. PCB (Printed Circuit Board)

Definition: The bare board. It serves as both the mechanical chassis and the electrical highway for the circuit, consisting of a non-conductive substrate (such as FR4) and conductive copper traces. At this stage, it contains no electronic components.

The engineering reality

It is best to treat the PCB as a complex, custom-engineered mechanical part, rather than a generic commodity. Its creation requires intricate chemical etching, precision drilling, and multi-stage plating. Once the board is fabricated, its physical structure is permanently set.

The Risk: Should the PCB design contain a layout error, any subsequent assembly built on that board will either fail or require expensive manual rework, such as cutting traces or adding jumper wires.

• Suppliers: Dedicated PCB Fabrication Houses (Fab Houses).
• Key Tooling: Electrical test (E-test) fixtures, silkscreen screens.
• Typical Defects: Open circuits, shorts, trace delamination, warped boards.

2. PCBA (Printed Circuit Board Assembly)

Definition: The functional engine of the device. This is the result of soldering electronic components onto the bare PCB. This critical step transforms the passive board into an active, functional electronic device.

The engineering reality

This stage introduces complex thermal dynamics and chemical reactions, such as flux activation. The ultimate goal of the SMT line is to create thousands of reliable intermetallic bonds simultaneously across the entire board.

The Risk: Whenever the thermal profile of the reflow oven is incorrect, the resulting solder joints can become cold and brittle, or the sensitive components might be permanently damaged by excess heat.

• Suppliers: EMS Providers (Assembly Lines).
• Key Tooling: Solder stencils, Pick & Place programs, reflow profiles, ICT (In-Circuit Testing) fixtures.
• Typical Defects: Solder bridges, tombstoned components, missing parts, reversed polarity.

Pro-Tip: Try not to judge the quality of a PCBA purely by visual inspection. A solder joint can look shiny and perfect to the naked eye but still fail electrically due to internal microscopic voids. It’s always best practice to rely on Automated Optical Inspection (AOI) and proper X-ray verification for hidden joints like BGAs.

3. Box build (system integration)

Definition: The finished, enclosed product. This stage integrates the working PCBA into a final enclosure alongside human-machine interfaces, wire harnesses, and final retail packaging. It is now completely ready for the end-user.

The engineering reality

At this stage, the process moves away from automated, microscopic precision and leans heavily on manual mechanical assembly. The primary focus shifts from microscopic solder defects to macroscopic issues regarding physical fit and overall system function.

The Risk: Misaligned mechanical tolerances result in the PCBA failing to fit inside the enclosure, or external connectors failing to align properly with the chassis ports.

• Suppliers: EMS Providers (System Assembly Departments) or dedicated Contract Manufacturers.
• Key Tooling: Injection molds, assembly jigs, functional test stands, screw-driving robots.
• Typical Defects: Cosmetic scratches, pinched internal cables, loose fasteners, firmware version mismatches.

Cost and complexity scaling

Moving from a bare PCB to a complete Box Build greatly increases the number of variables that require active management.

Cost considerations

• PCB: Material cost plus Fabrication labor (generally a low unit cost).
• PCBA: PCB + Components (which often make up 80% of the entire BOM cost) + Assembly Labor and Machine Time.
• Box Build: PCBA + Mechanical parts + Manual Labor + Logistics. Shipping fully assembled, bulky units significantly increases freight costs due to volumetric weight.

Lead time factors

• PCB: Typically a 1–3 weeks standard fabrication time.
• PCBA: Dictated by the longest lead-time item on the BOM. A single critical IC requiring a 40-week delivery cycle forces the entire PCBA schedule to match that duration.
• Box Build: Inherits the PCBA lead time but also includes mechanical tooling lead times. For example, cutting steel molds for customized plastic cases can easily take anywhere from 8 to 12 weeks.

Final Checkout: What is being built: PCB vs PCBA vs Box Build

Level	Scope	Primary Risk	Critical Control
PCB	Bare Board Only	Fabrication Defects	Electrical Test (E-Test) at Fab House.
PCBA	Board + Components	Solder Joint Integrity	Automated Optical Inspection (AOI) and First Article Inspection (FAI).
Box Build	Full Device	Mechanical Fit & Function	Functional Testing (FCT) & Final QC.
BOM	Bill of Materials	Obsolete Parts	Validate lifecycle status of all components before quoting.
